LM rolling guide

LM rolling guide is the main product of HTK company, and it is the first product in the world to put linear rolling parts into practical application. It makes it possible to develop high-precision, high-rigidity, energy-saving, and long-life high-speed machine tools.

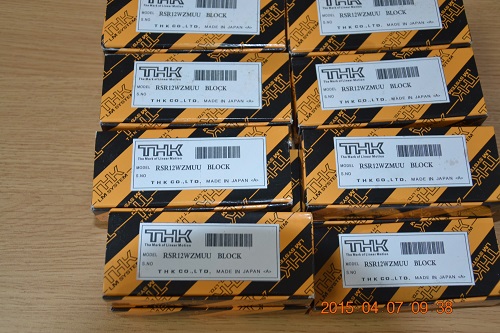

Eric Bearing Limited have enough stock for THK RSR12WZMUU, please click here.

— Ball cage type LM rolling guide

The use of a ball retainer can eliminate the mutual friction of the steel balls, achieve low noise, good sound quality, long-term maintenance-free and excellent high-speed performance.

Model list

SHS, SSR, SNR/SNS, SHW, SRS, SCR

— Retainer type roller rolling guide

Roller retainer is adopted to realize ultra-high rigidity roller guide rail with low friction, smooth movement and long-term maintenance-free.

Model list

SRG, SRN, SRW

— LM rolling guide (all steel ball type)

LM rolling guide (all-steel ball type) From small guides to large guides for machine tools, from linear guides to curved guides, a series of models are suitable for various purposes.

Model list

HSR, SR, NR/NRS, HRW, RSR/RSR-W, RSR-Z, HR, GSR, GSR-R, CSR, MX, JR, HCR, HMG, NSR-TBC, HSR-M1, SR-M1, RSR-M1, HSR-M2

LM rolling guide intelligent combination unit

The LM rolling guide intelligent combination unit is a compact actuator with an integrated structure of LM rolling guide and ball screw, with high rigidity and high precision. Using LM rolling guide intelligent combination unit can reduce the number of parts and design man-hours.

— Ball holder type LM intelligent combination unit

Ball cages are used in the LM guide and ball screw parts, and the operation speed is higher, the noise is lower, and the maintenance-free time is longer than the conventional KR type.

Model list

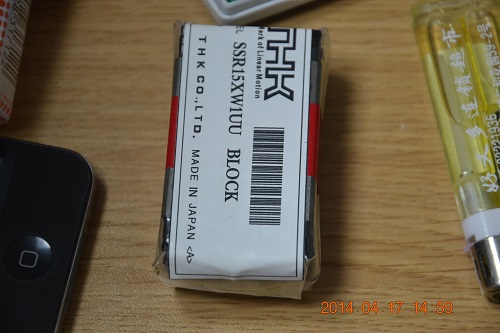

Eric Bearing Limited have enough stock for THK SSR15XW1UU, please click here.

SKR

— LM intelligent combination unit (total ball type)

A range of different types of ball screw leads from 1 mm to 25 mm are available.

Model list

KR

LM intelligent combination unit

LM intelligent combination unit is composed of aluminum base combined with LM rolling guide, standardized overhead table and drive system. The user can freely select the main components from the various options available, so as to be able to achieve the optimal technical specifications most suitable for the specific application.

— LM intelligent combination unit GL type

The GL type is a single-axis actuator that can be combined with a ball screw drive or a belt drive on an aluminum base mounted with a GSR type LM guide.

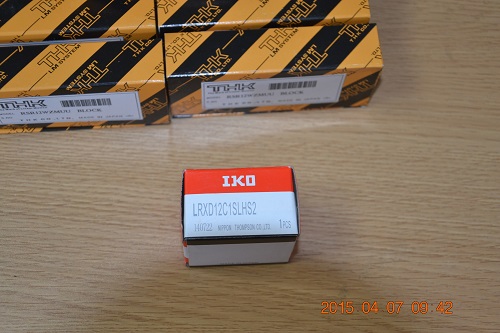

Eric Bearing Limited have enough stock for THK LRXD12C1SLHS2, please click here.
